Ball Valve

HomeProducts • Ball Valve

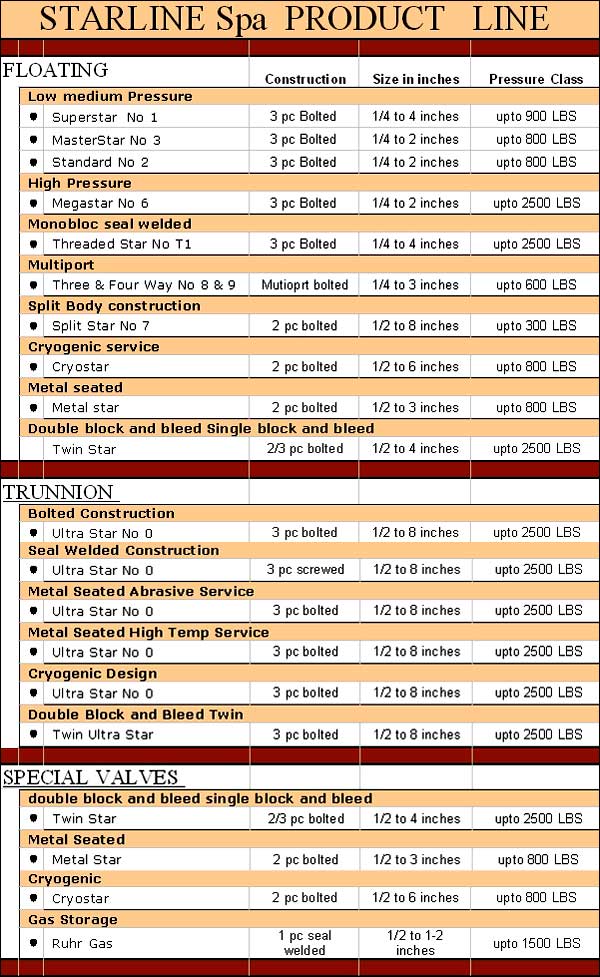

Construction Size in inches Pressure Class
FLOATING
Low medium Pressure
Superstar No 1 3 pc Bolted 1/4 to 4 inches upto 900 LBS
MasterStar No 3 3 pc Bolted 1/4 to 2 inches upto 800 LBS
Standard No 2 3 pc Bolted 1/4 to 2 inches upto 800 LBS
High Pressure
Megastar No 6 3 pc Bolted 1/4 to 2 inches upto 2500 LBS
Monobloc seal welded
Threaded Star No T1 3 pc Bolted 1/4 to 4 inches upto 2500 LBS
Multiport
Three & Four Way No 8 & 9 Mutioprt bolted 1/4 to 3 inches upto 600 LBS
Split Body construction
Split Star No 7 2 pc abaolted 1/2 to 8 inches upto 300 LBS
Cryogenic service
Cryostar 2 pc bolted 1/2 to 6 inches upto 800 LBS
Metal seated
Metal star 2 pc bolted 1/2 to 3 inches upto 800 LBS
Double block and bleed Single block and bleed
Twin Star 2/3 pc bolted 1/2 to 4 inches upto 2500 LBS
TRUNNION
Bolted Construction
Ultra Star No 0 3 pc bolted 1/2 to 8 inches upto 2500 LBS
Seal Welded Construction
Ultra Star No 0 3 pc screwed 1/2 to 8 inches upto 2500 LBS
Metal Seated Abrasive Service
Ultra Star No 0 3 pc bolted 1/2 to 8 inches upto 2500 LBS
Metal Seated High Temp Service
Ultra Star No 0 3 pc bolted 1/2 to 8 inches upto 2500 LBS
Cryogenic Design
Ultra Star No 0 3 pc bolted 1/2 to 8 inches upto 2500 LBS
Double Block and Bleed Twin
Twin Ultra Star 3 pc bolted 1/2 to 8 inches upto 2500 LBS
SPECIAL VALVES
double block and bleed single block and bleed
Twin Star 2/3 pc bolted 1/2 to 4 inches upto 2500 LBS
Metal Seated
Metal Star 2 pc bolted 1/2 to 3 inches upto 800 LBS
Cryogenic
Cryostar 2 pc bolted 1/2 to 6 inches upto 800 LBS
Gas Storage
Ruhr Gas 1 pc seal welded 1/2 to 1-2 inches upto 1500 LBS
